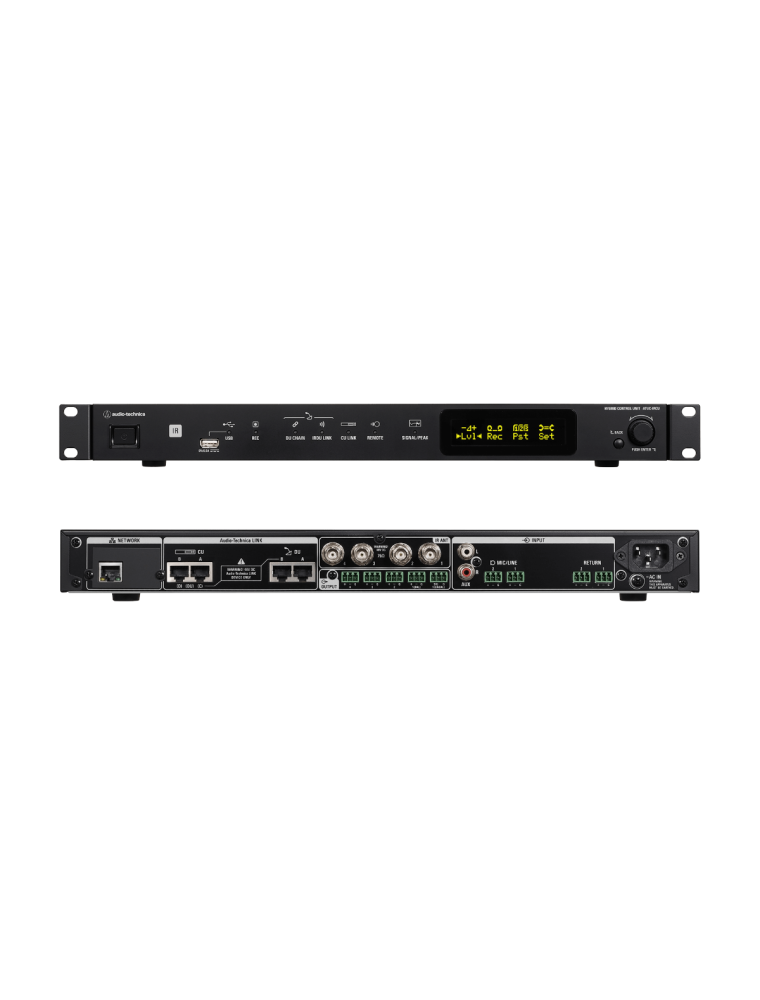

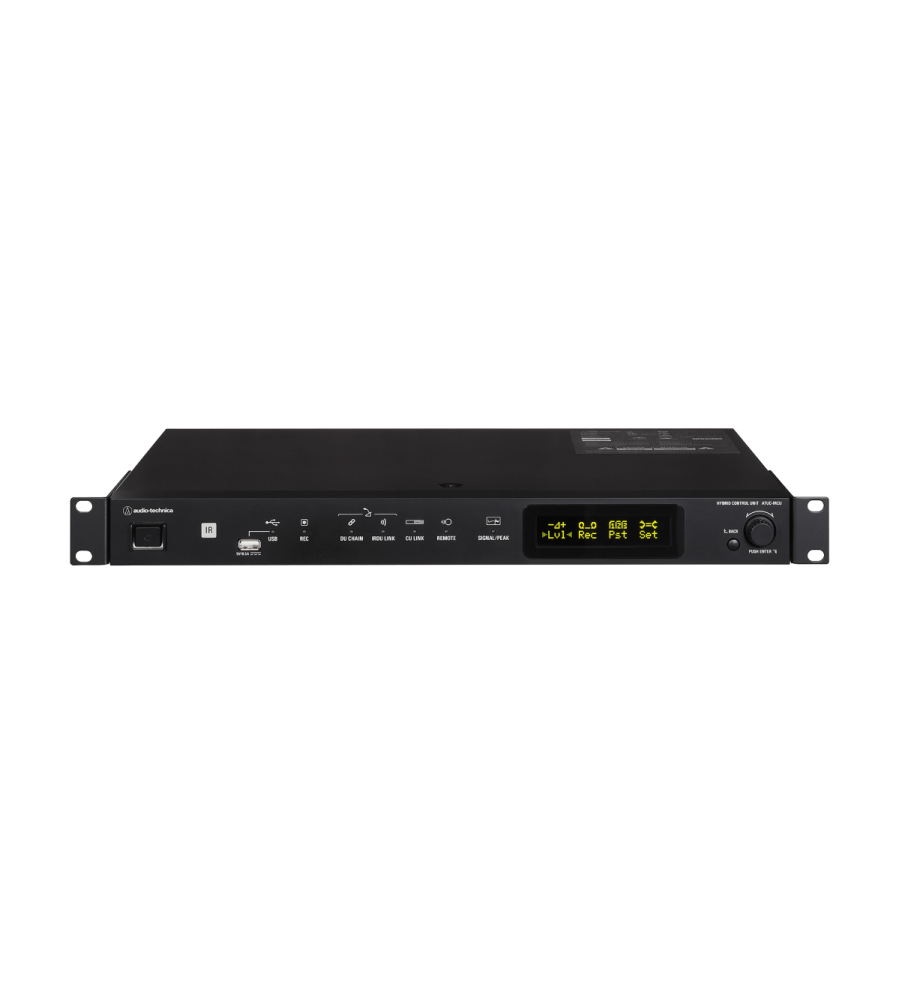

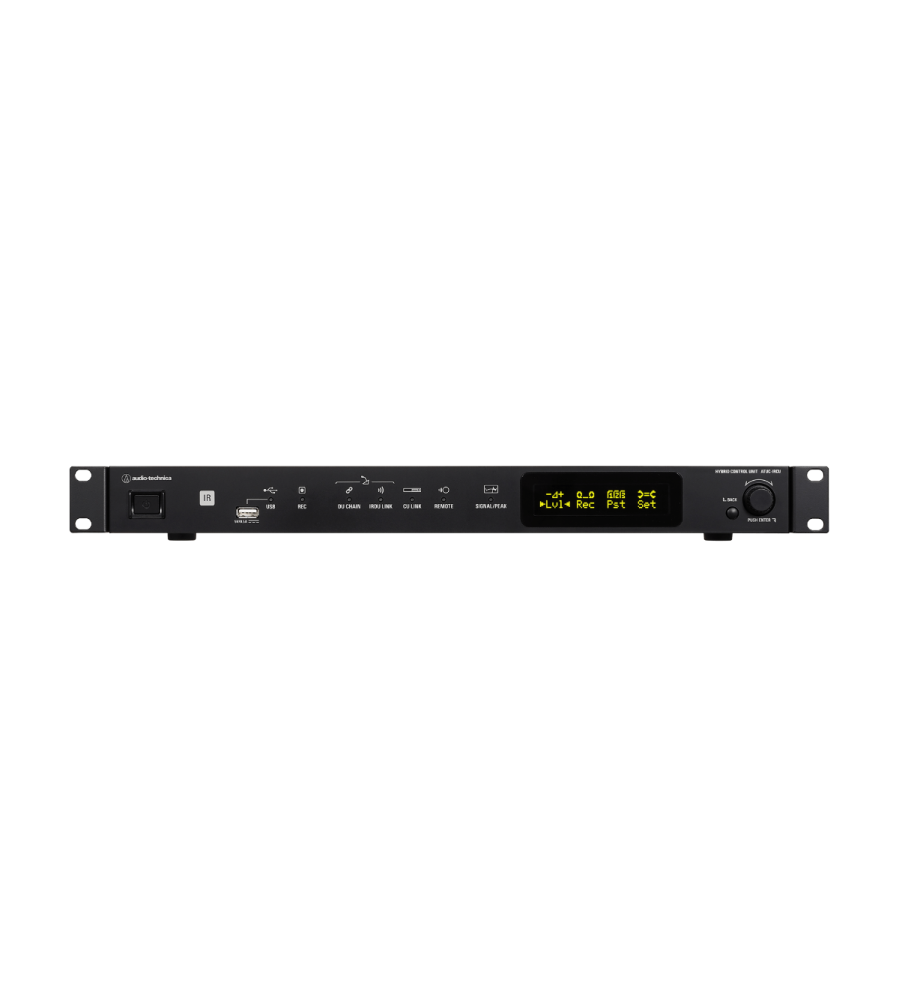

ATUC-IRCU Hybrid Control Unit

Κωδικός Προϊόντος: ATUC-IRCU Hybrid Control Unit
Διαθεσιμότητα: Μη διαθέσιμο
ATUC-IRCU Hybrid Control Unit
  • Each ATUC-IRCU infrared control unit supports a maximum of 200 ATUC-IRDU discussion units and 100 ATUC-50DU/IU/INT units
  • Systems can be configured in either daisy chain or ring topology
  • Unlike typical UHF wireless systems that broadcast through walls, the ATUC-IR infrared transmission keeps your signals safe and secure, with no information leakage
  • IR transmission does not require any form of frequency coordination
  • Built-in WAV and MP3 recorder lets you record to a USB mass storage device
  • Control available through Web Remote interface and third-party IP Control Systems

Overall System
Operating Frequencies Infrared
Frequency Response +1.0, -2.0dB, 20Hz - 20kHz (+4dBu output at 1kHz)
Data Length / Sampling Frequency 24bit/48kHz
Dynamic Range 110dB, A-Weighted
Signal-to-Noise Ratio 90dB, A-Weighted
Total Harmonic Distortion Less than 0.03%, 1 kHz unity
Operating Temperature Range 0 - 40°C
Operating Humidity 25 - 85%
Simultaneous Use 300 (200x ATUC-IRDU + 100x ATUC-50CU/ATUC-50IU)
Headroom 20dB
Latency MIC Input to Output: 1ms
DU to CU: 1.2ms
Number Of Channels Voice: 10 channels
Monitor: 4 channels
Discussion Unit
Equivalent Input Noise Mic/Line: Less than –126dBu, Rs = 150ohm
Control Unit
Connections Inputs: MIC/LINE×2, AUX×1 (ST), INTERPRETATION RETURN×2
Outputs: BAL.×4, UNBAL.×1
Link/Chain: DU A/B terminals, CU A/B terminals (DU C/D terminals)
IR Antenna: IR antenna I/O terminals × 4 (Load Impedance 75ohm)
N
Residual Noise Less than –86dBu, A-Weighted
Crosstalk at 1 kHz Less than –80dB
Power Supply AC 100V - 240V 50/60Hz
Phantom Power DC+48V
Power Consumption 26W to 175W (maximum)
Dimensions 434mm × 326mm × 44mm
Weight 4.76kg
OLED Display 20 × 2Character type, Color: Yellow
Operating life: 100,000hours
Accessories Power cord, Euroblock connectors (9 pieces)
Infrared
Bandwidth 1MHz - 10MHz
Modulation Method FM
Recording
Compressed bit-rate MP3 - 64kbps/128kbps/192kbps/256kbps/320kbps
Media Via USB Storage Device (Supported file systems: FAT16/FAT32):
WAV - 1/2/3/4 track (BWF standard)
MP3 - 1/2 track (Original format)
