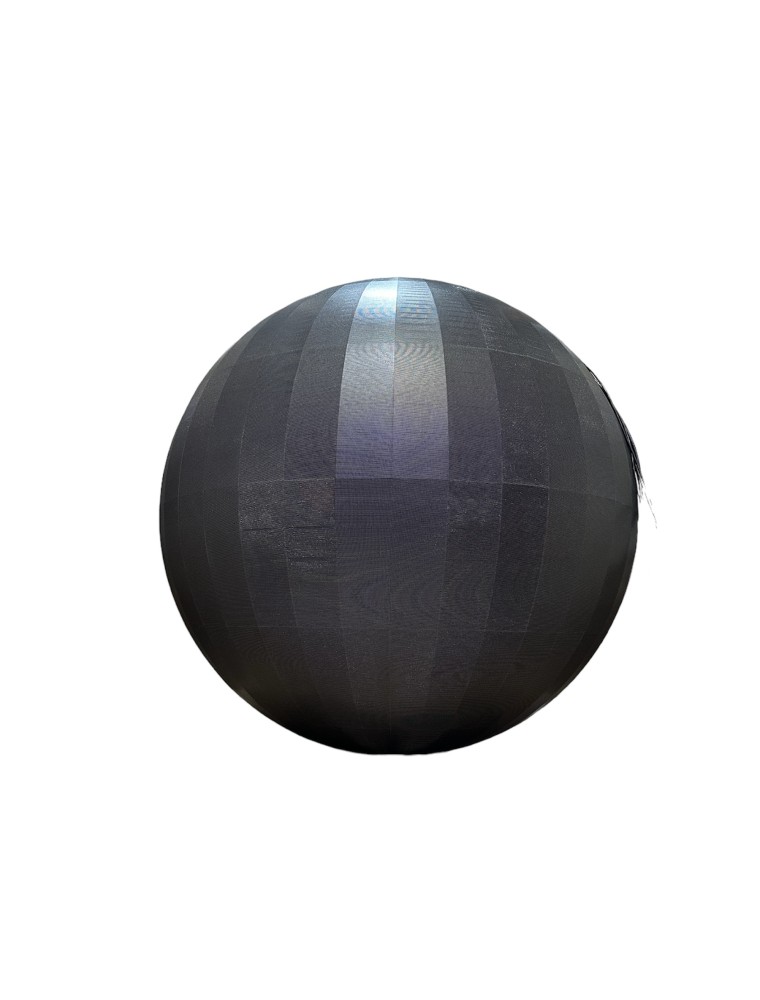

BALL SCREEN P2.5 / 1.5m DIAMETER

LED Chip                                        SMD1515

LED Configuration                        1R1G1B

Pixel Pitch                                       2.5 mm

Physical pixel                                 160000dots

Drive Mode                                    1/16S

Brightness                                        800-1000cd/m2

Horizontal View Angle                    140°

Vertical View Angle                         140°

Minimum View Distance               3--50m

Gray Scale                                          14bit

Maximum Power Consumption    800 W/㎡

Average Power Consumption        240W/㎡

Operating Power Source                 DC4.2V-5V

Refresh Rate                                      ≥3840Hz

Stock Temperature                         (-40℃～+85℃)

Working Temperature                    ( -20℃～+50℃ )

Operating Humidity                        10-90% RH

Life Span                                           100,000Hours

Protection Rating                            Ip31

Control System                                Novastar
