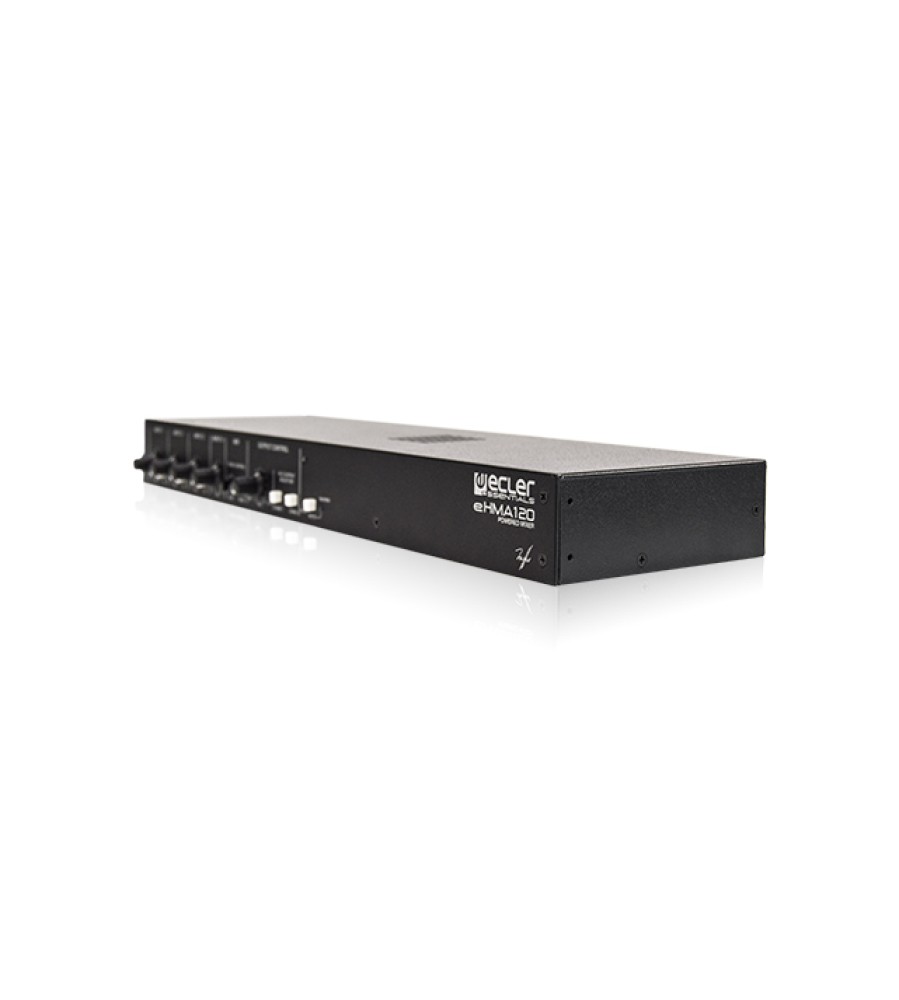

ECLER eHMA120 Powered Mixer

Audio Outputs 2 Hi-Z + 1 Lo-Z + 1 AUX/REC
1 channel @ 70/100V (RMS) 95W
1 Channel @ 4Ω 95W
Dimensions / weight 1RU x 120mm depth / 2,9 kg.
Inputs 2 MIC/LINE + 1 MIC + 1 LINE

Key Features
• 1 x 95W @ 4Ω
• 1 x 95W @ 70V / 100V
• 2 x ZONE ON/OFF selection switches
• 1 ST LINE input
• 3 MIC / LINE inputs, including Talkover function (priority)
• 1 Pager port, including embedded Chime tone
• 2-band EQ (BASS/TREBLE) for Mix Output
• 24VDC external power supply included, with external battery backup connector
• Auto Stand-by function
• 24VDC Phantom Power (external switch)
• MUTE port to remotely mute the unit from an external device, via dry contact closure.

Applications
• Retail stores, restaurants and bars
• BGM & Paging solutions, with message priorities and source/volume independent selection.
