GS 140 9m MOTORISED LIFTING STRUCTURAL TOWER TRUSS 40 x 40

Κωδικός Προϊόντος: 6.001.094
Διαθεσιμότητα: Διαθέσιμο
GS 140 9m MOTORISED LIFTING STRUCTURAL TOWER TRUSS 40 x 40

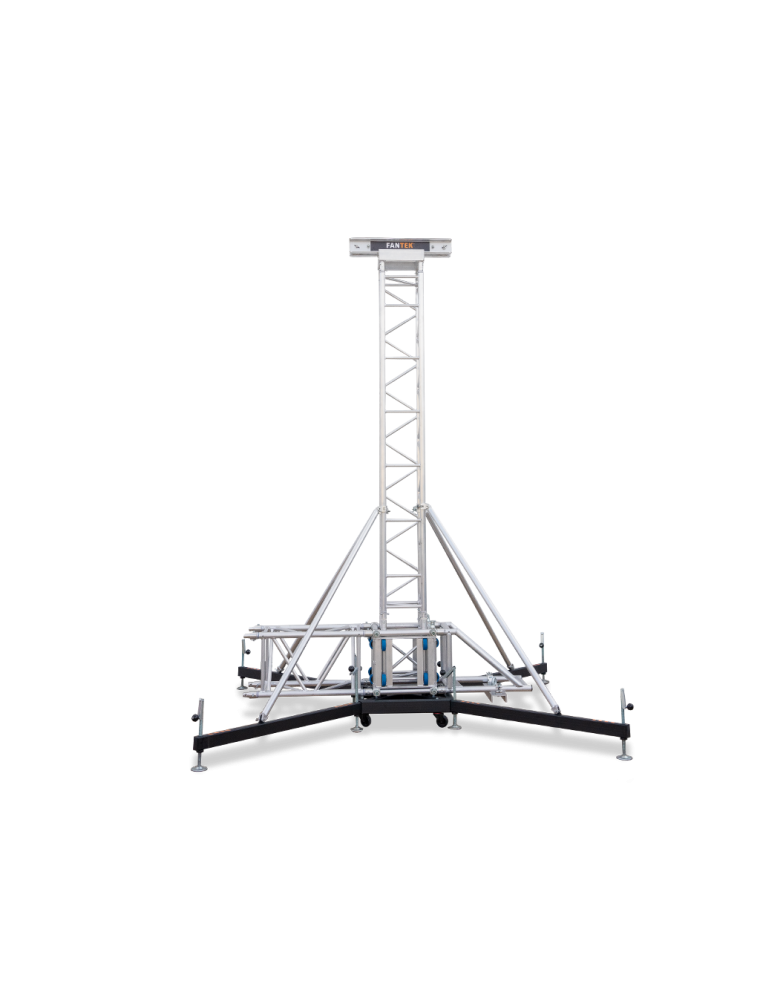

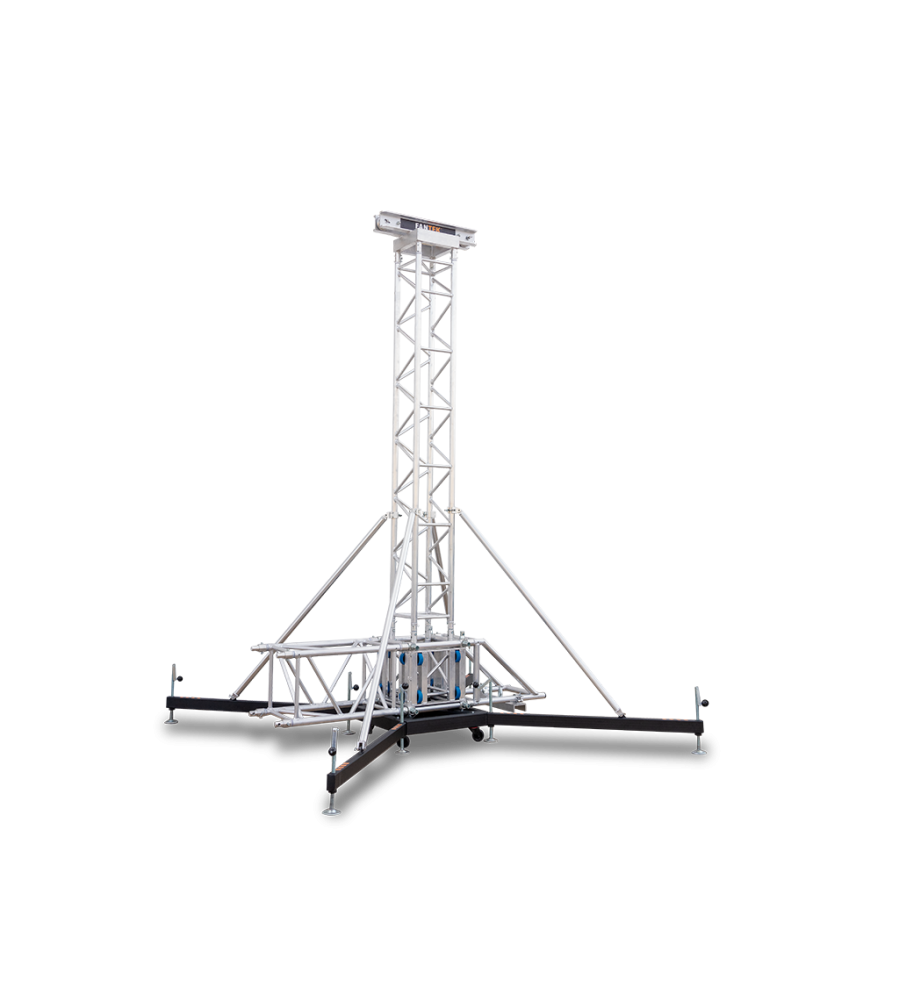

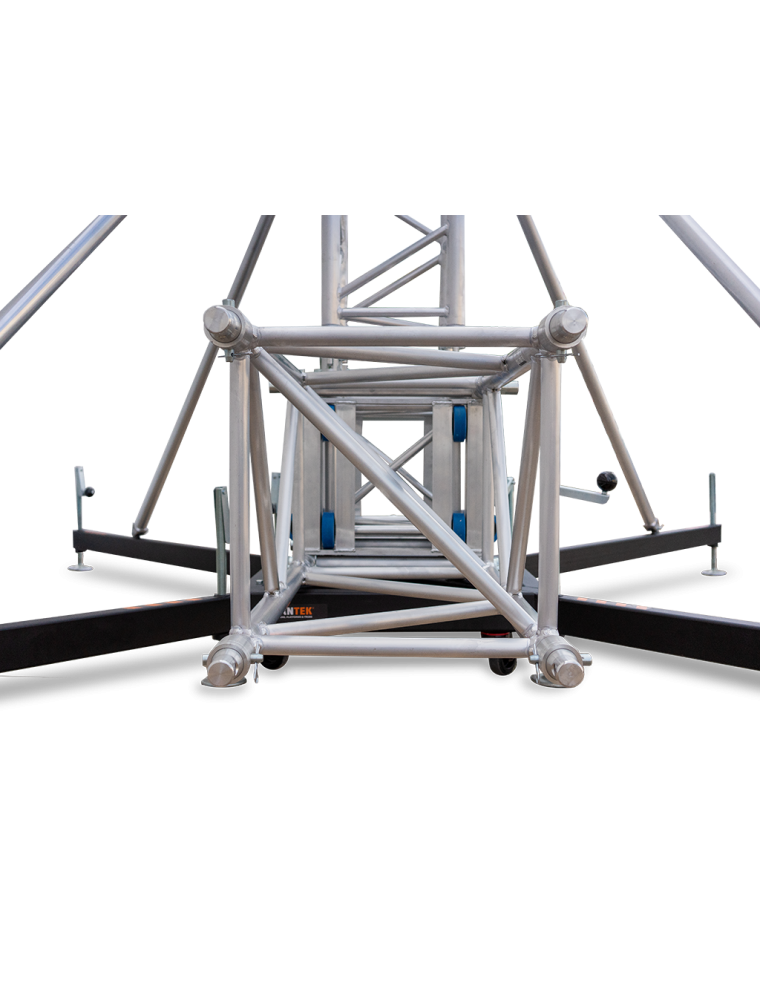

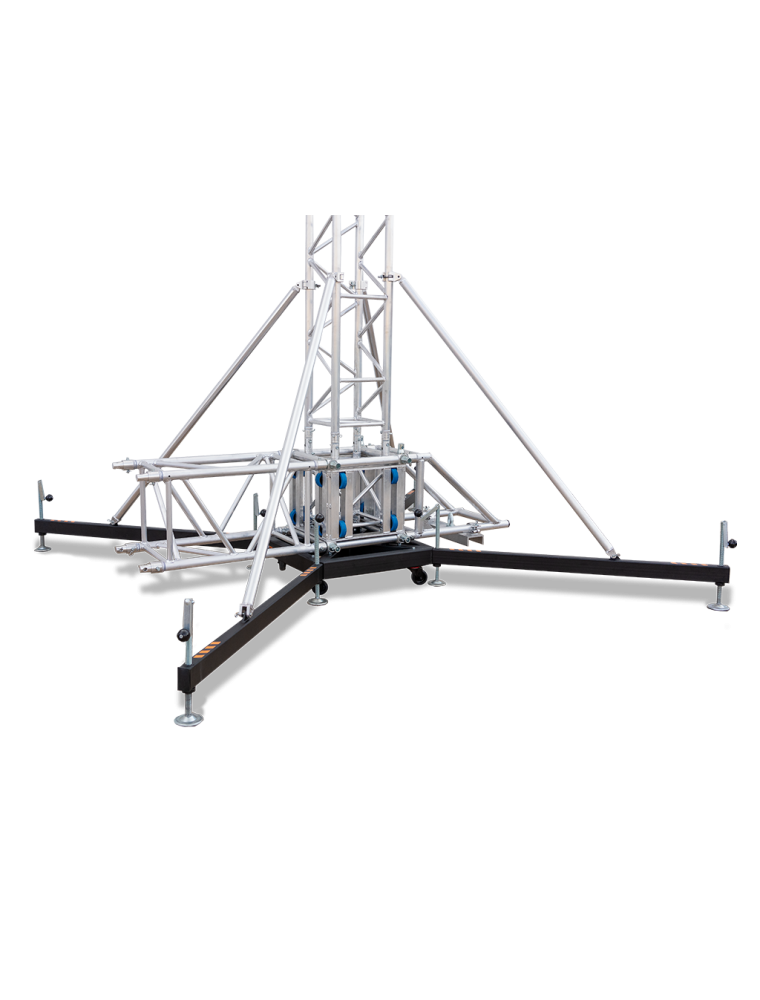

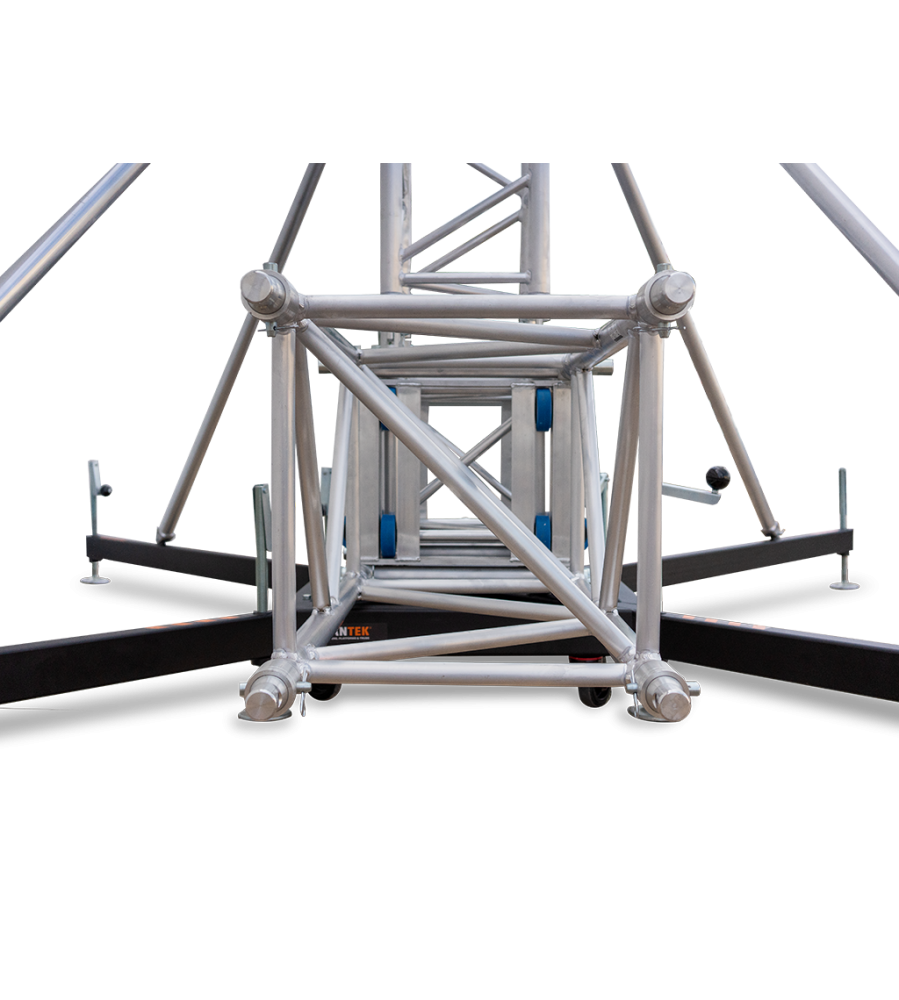

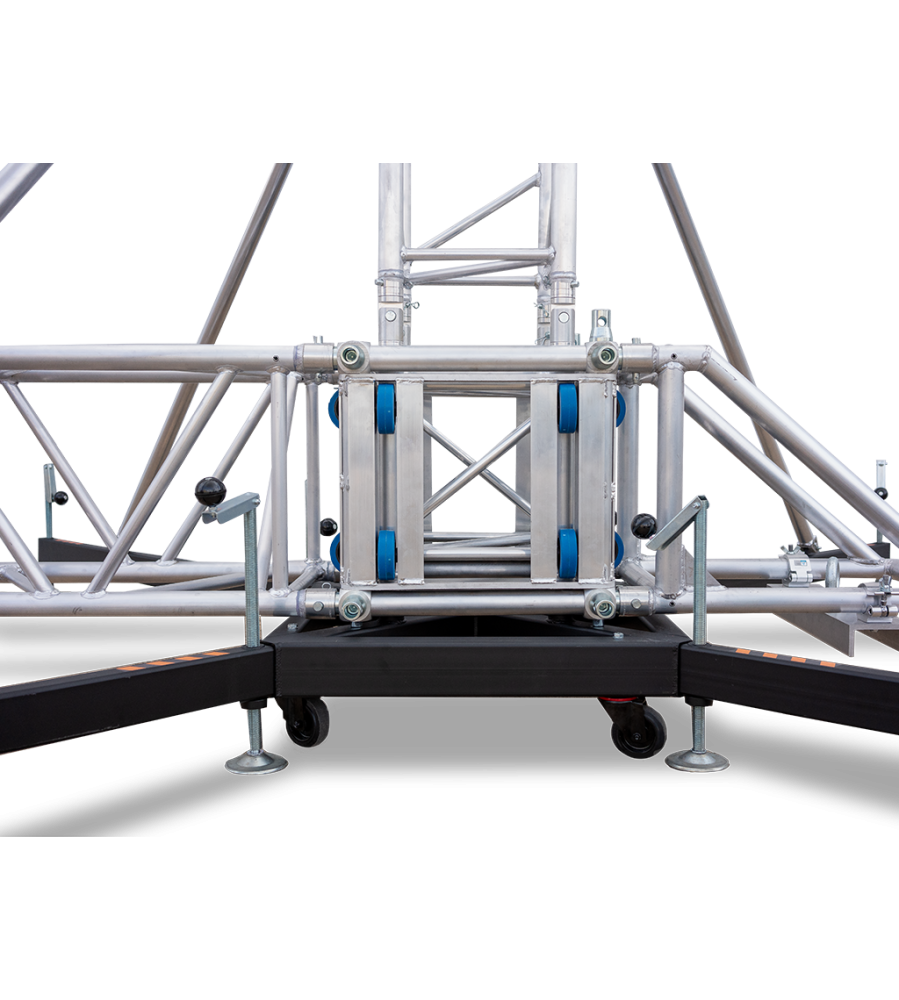

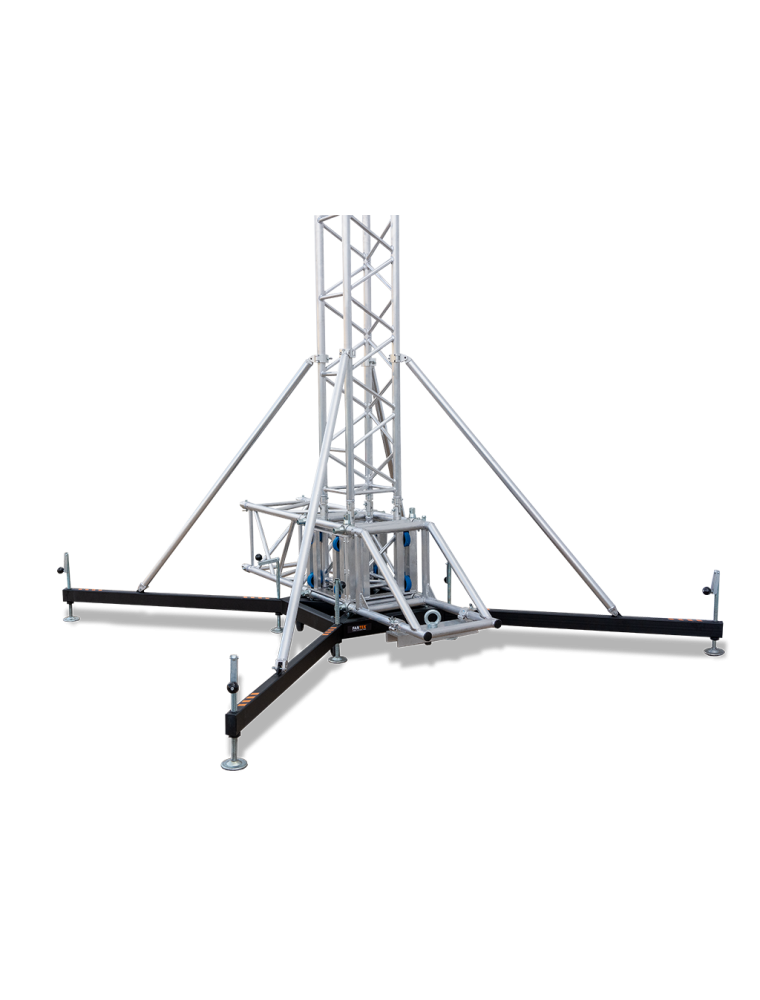

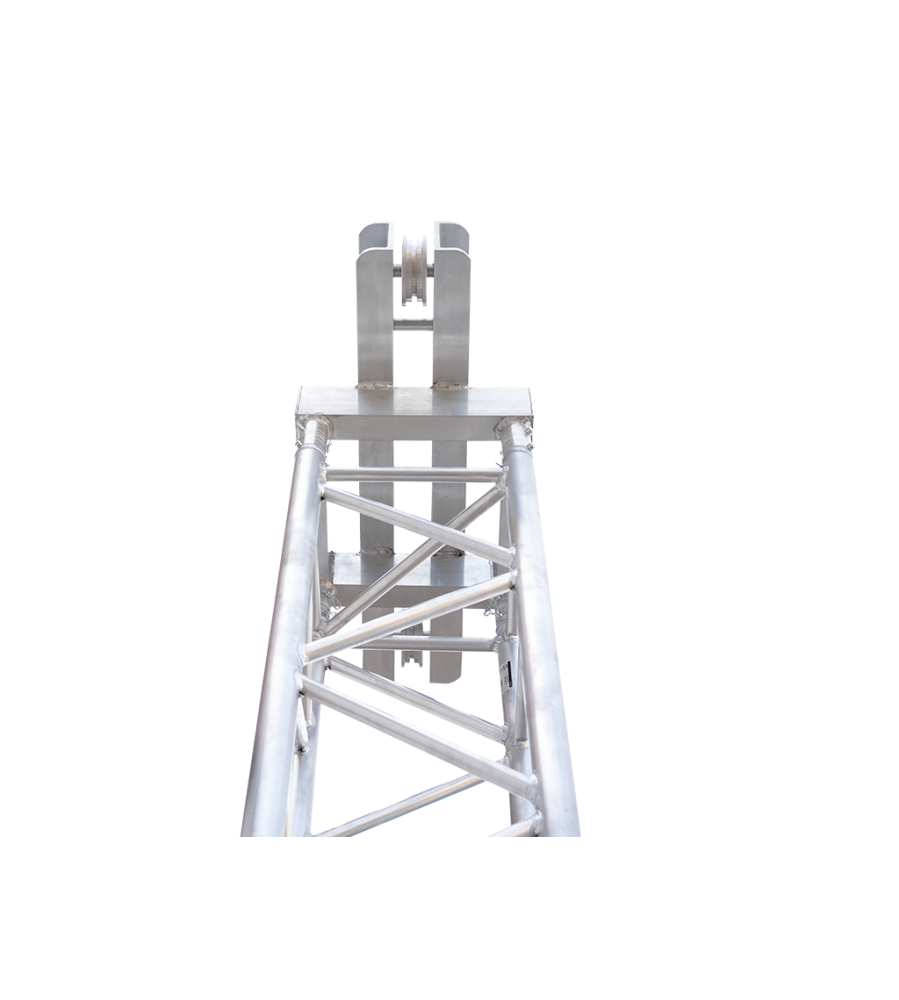

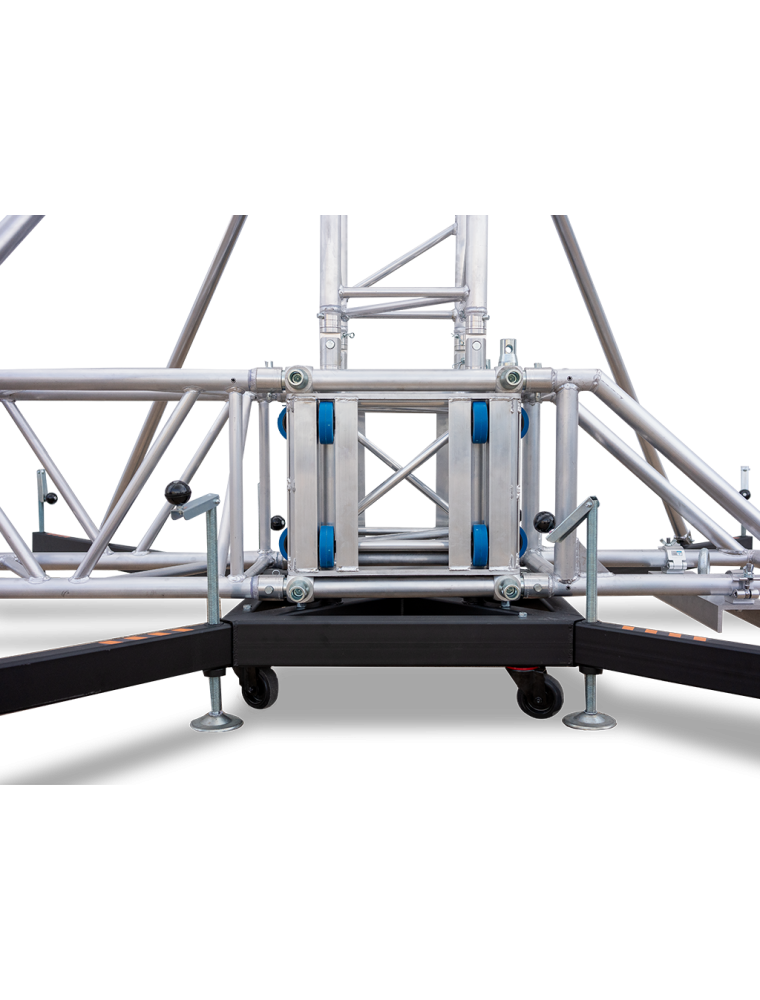

Ground support truss tower with mast truss EC40 PROGS.The mast sections have one side ladder braces disposition to facilitate safe and easy acces to top truss by fulfilling the necessary preventive measures. The tower can be used with our Heavy Duty series and EC40 with the needed adaptator. The T140 sleeve block is a fully bolted structural element that offers much more precision and resistance than conventional welded units.


  • Truss mast EC40 PROGS.
  • High load series.
  • Easy assembly.


Maximum Load
2000kg
Maximum Height
9
Weight
2000kg



Aluminum thickness4 mm
Main tube diameter50 mm
Down tube diameter25 mm
ColourSilver
Section dimensions39 x 39 cm
Compatible accessoriesT140-SM / T140-SMPA
Compatible trussEC52, EC76, EC40PROGS
MaterialAluminium and steel
Maximum height9 to 12m
No. of sections9m, 4 sections: 1xEC4005PROGS+1xEC402PROGS+2xEC403PROGS; 12m, 5 sections: 1xEC4005PROGS+1xEC402PROGS+3xEC403PROGS
Maximum Load2000 kg
Elevation systemmotor

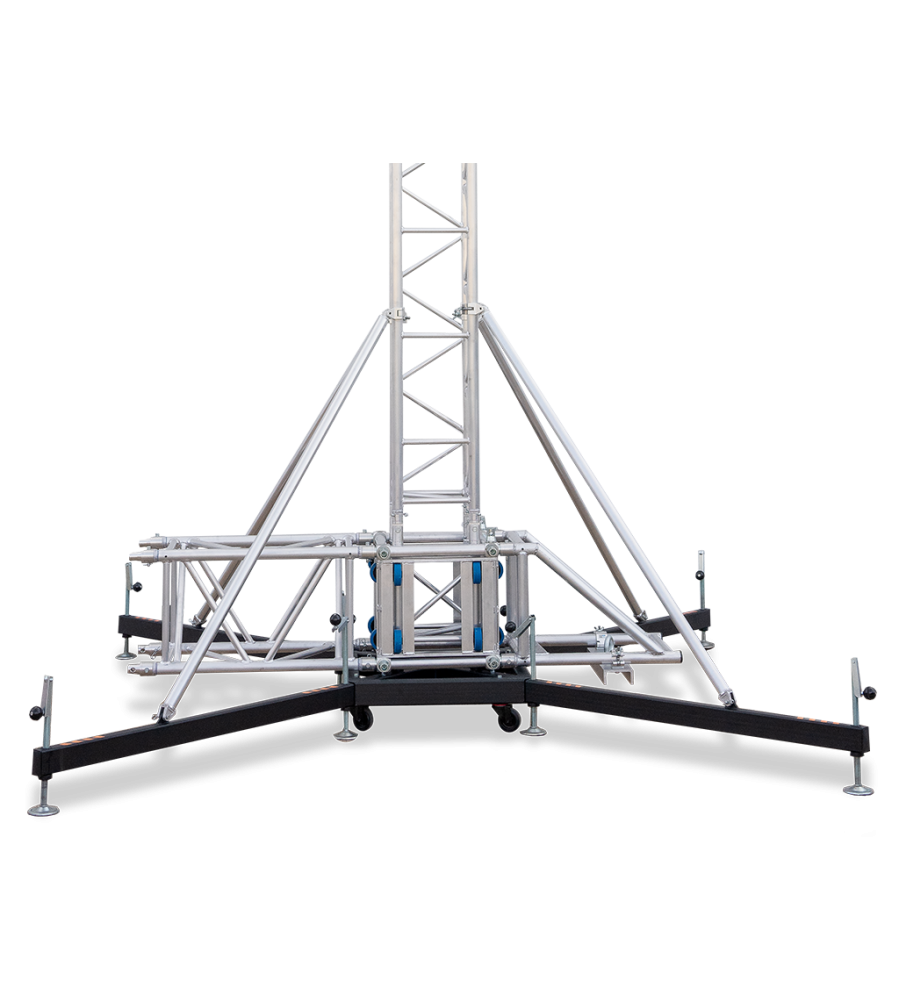

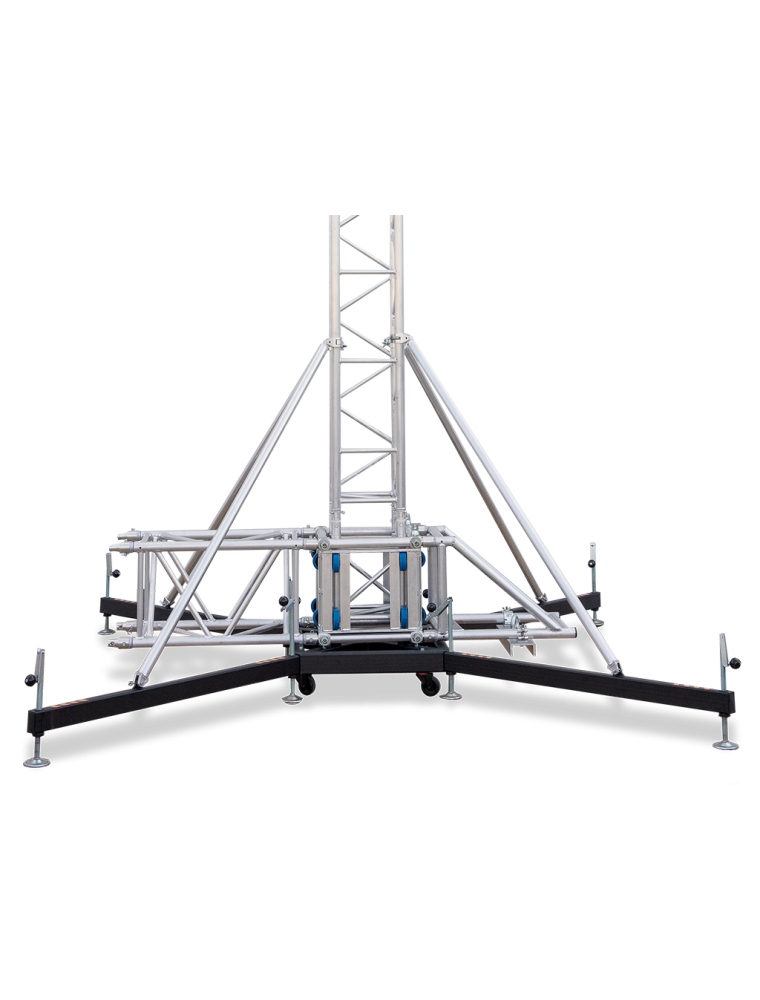

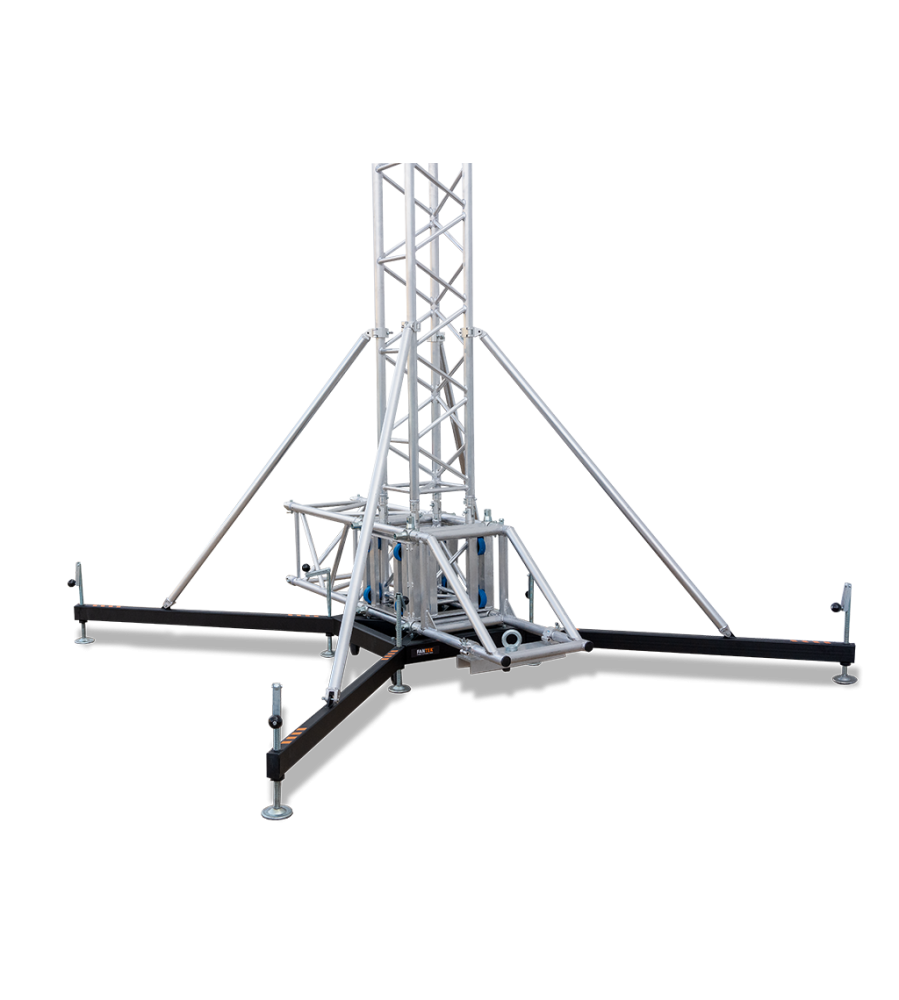

Unfolded base4.35 x 4.35 m (with legs)
Folded Base79 x 79 cm (without legs)
Weight9m: 253 kg / 12m 280 kg
