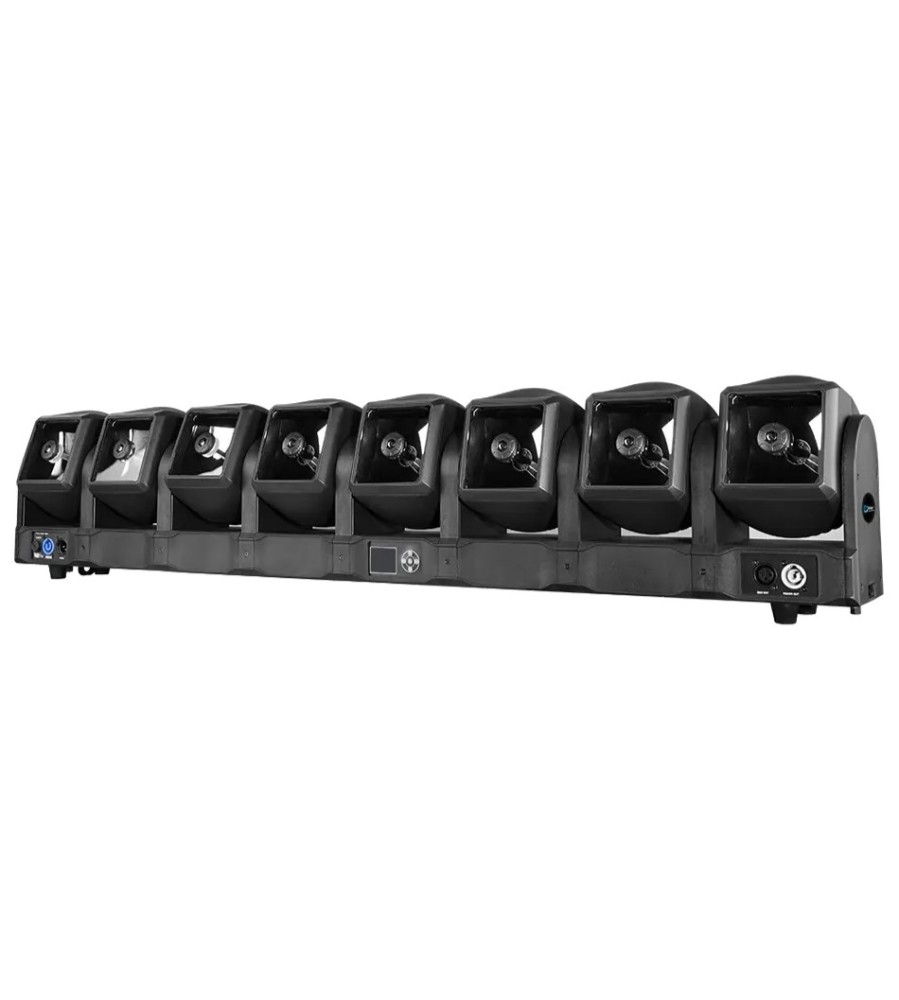

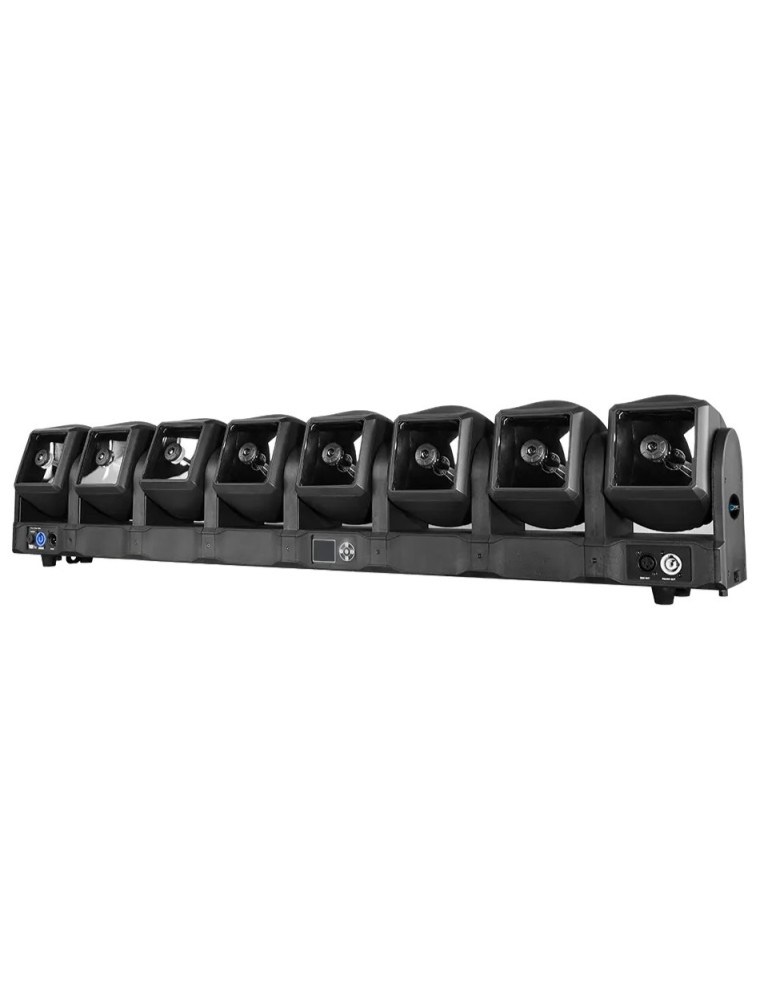

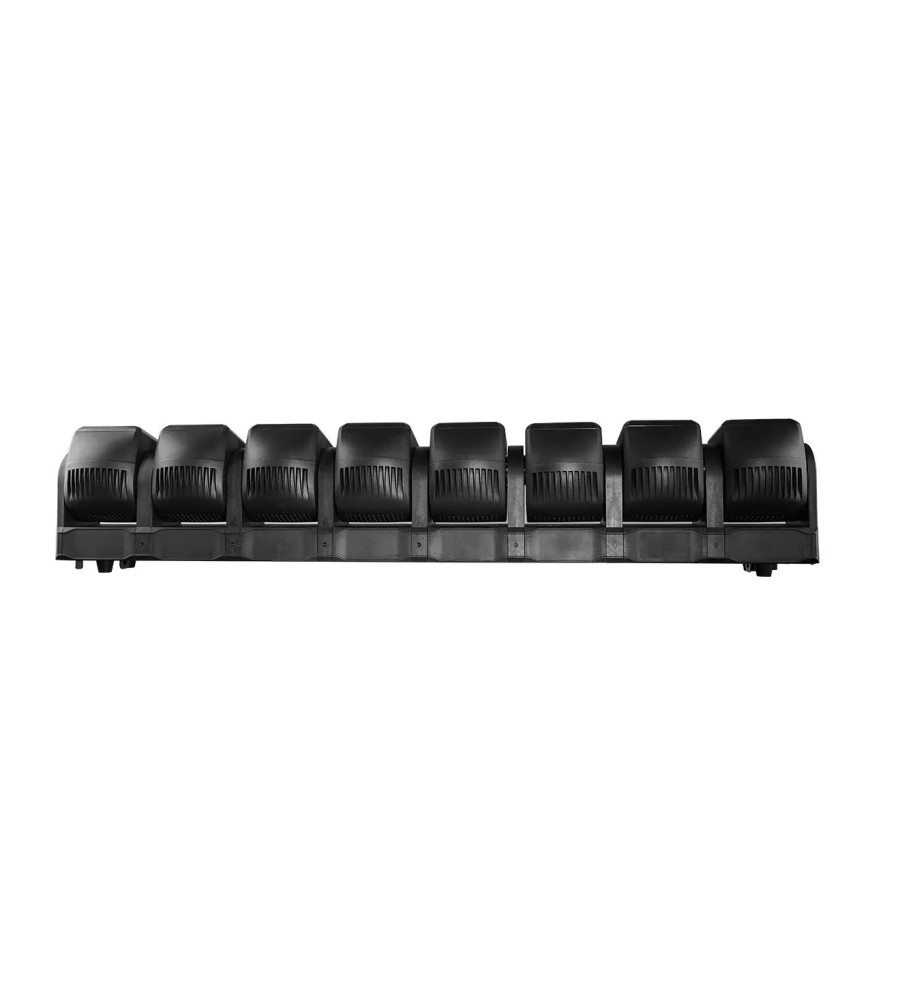

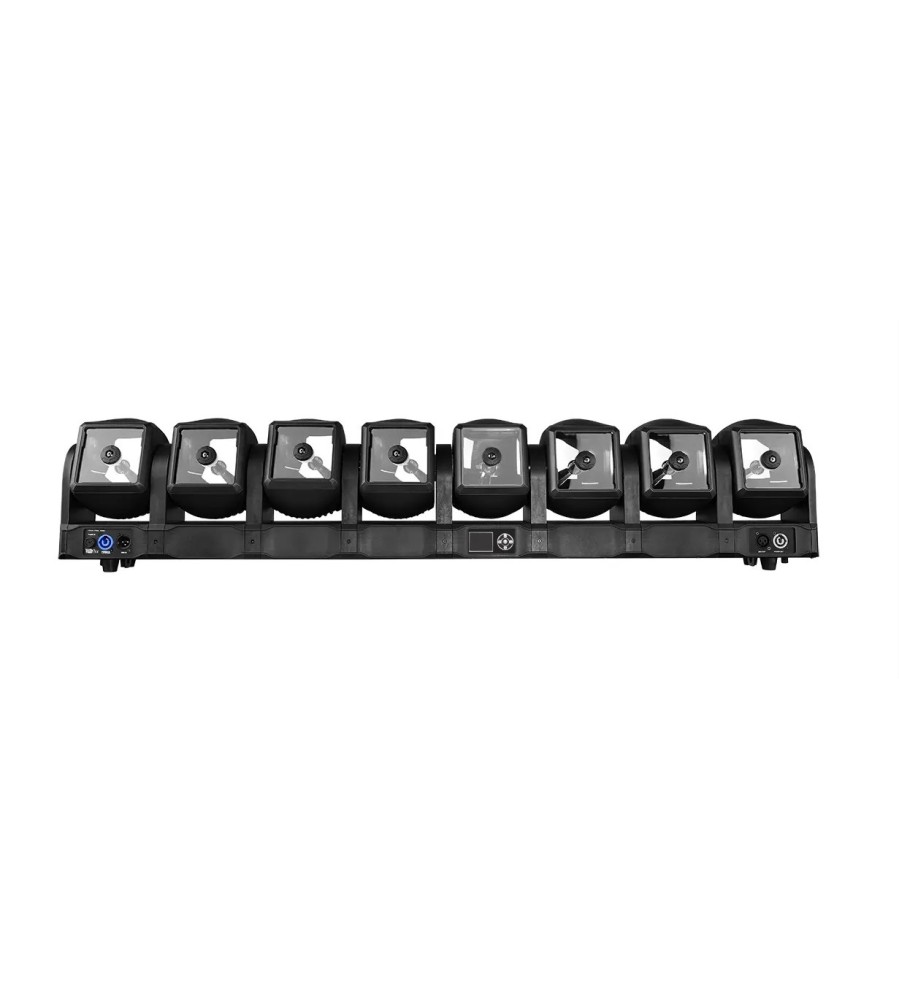

PLANETA BAR 860

Κωδικός Προϊόντος: 2.137.002

Διαθεσιμότητα: Διαθέσιμο Βουλγαρία

Περιγραφή

Light Source

Source:
8*60W 4-IN-1 RGBW LEDs
(8*30)*0.2W 3-IN-1 SMD RGB LEDs
Flicker free operation for broadcast TV and FILM
LED driving frequency adjustable
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

Optics

8PCS high efficiency lens
3.5°Projection angle

Movement
TILT: 2 modes
1. 360° Continuous movement
2. 240° (8/16 bit)
Fast, quiet, smooth and precise 2-phase motors
Smooth, fast and precise resolution for TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement

Color System
Pixel mapping capability with each LEDs controllable individually
Sophisticated 4 colors RGBW mixed
Linear CTO 2500-8000K
Sharp beam effect
Preset static patterns
Preset dynamic patterns with variable speed
Preset dynamic color macro with variable speed

Strip Effect

Each head with strip effect with different built-in macros
(variable speed control)

Strobe Effect
1-25Hz shutter/strobe effect with variable speed
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed

Dimming System

0-100% Smooth linear LED dimming

Control System

22/59/85/134 DMX channels USITT DMX-512
DMX512, master-slave, sound activated or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Shielded input signal protection for stable signal without interference
3-Pin XLR connectors IN/OUT

Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON IN/OUT with fuse
640W Power consumption

Weight
N.W.: 19.07 kg
G.W.: 21.3 kg

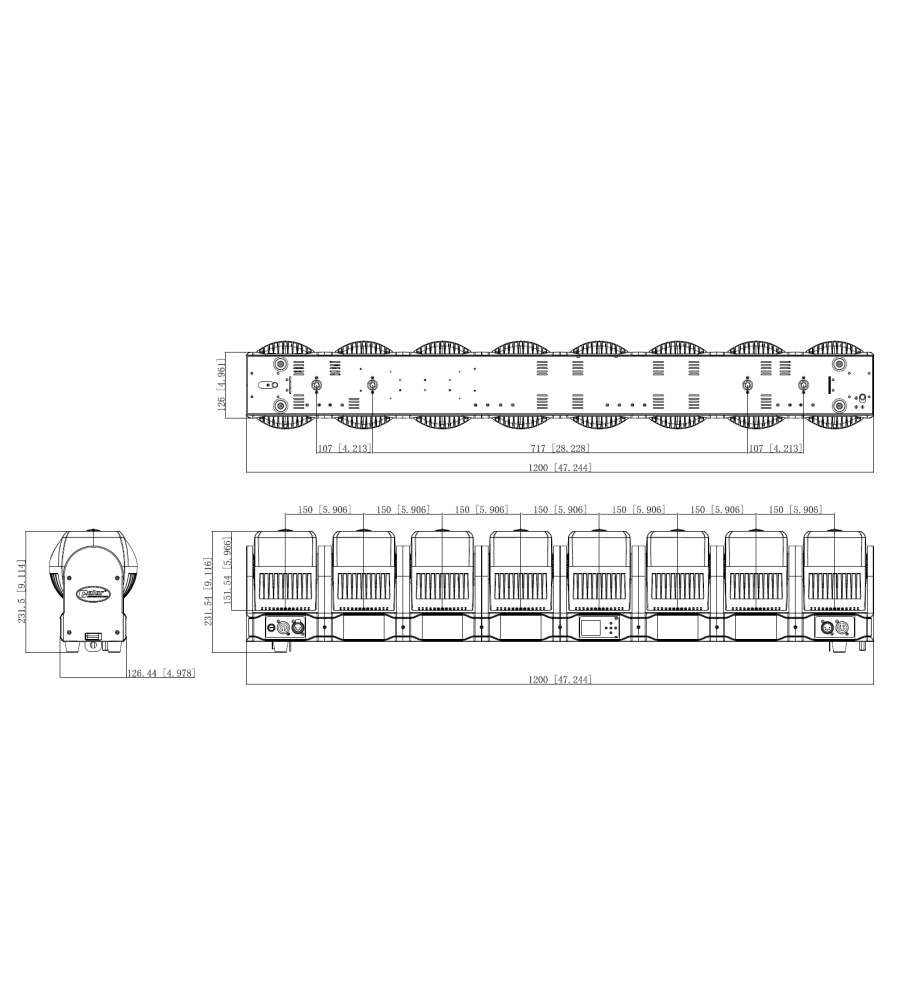

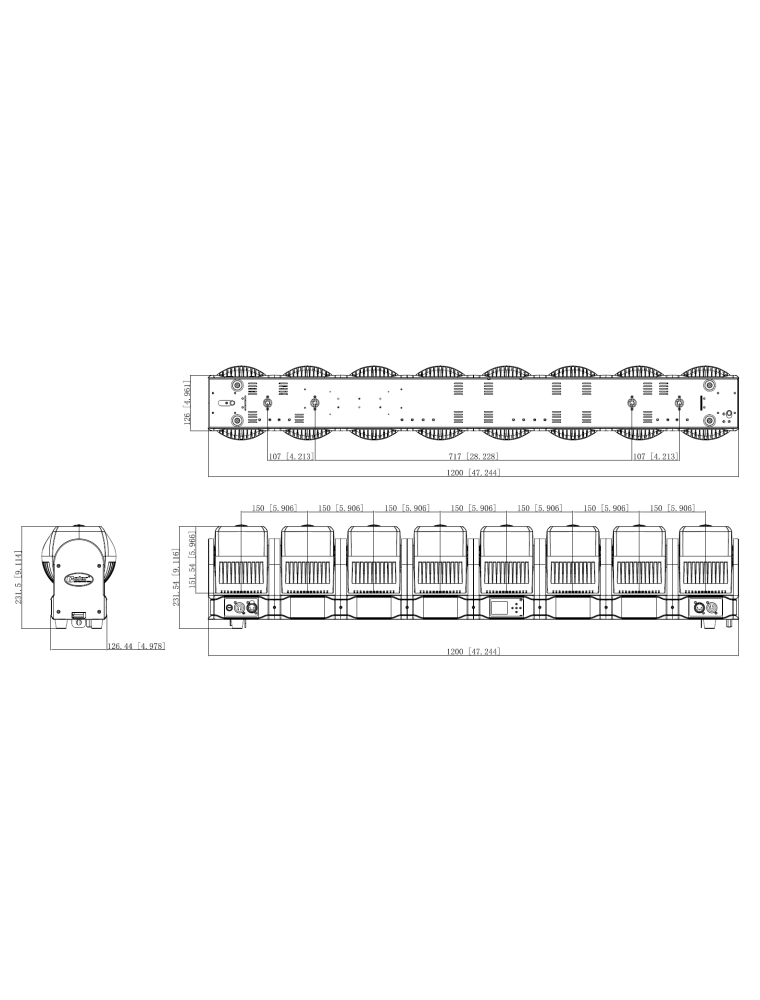

Dimensions

Product Dimensions: 168(D)*1200(W)*235.5(H)mm
Packing Dimensions: 325(D)*1295(W)*255(H)mm
