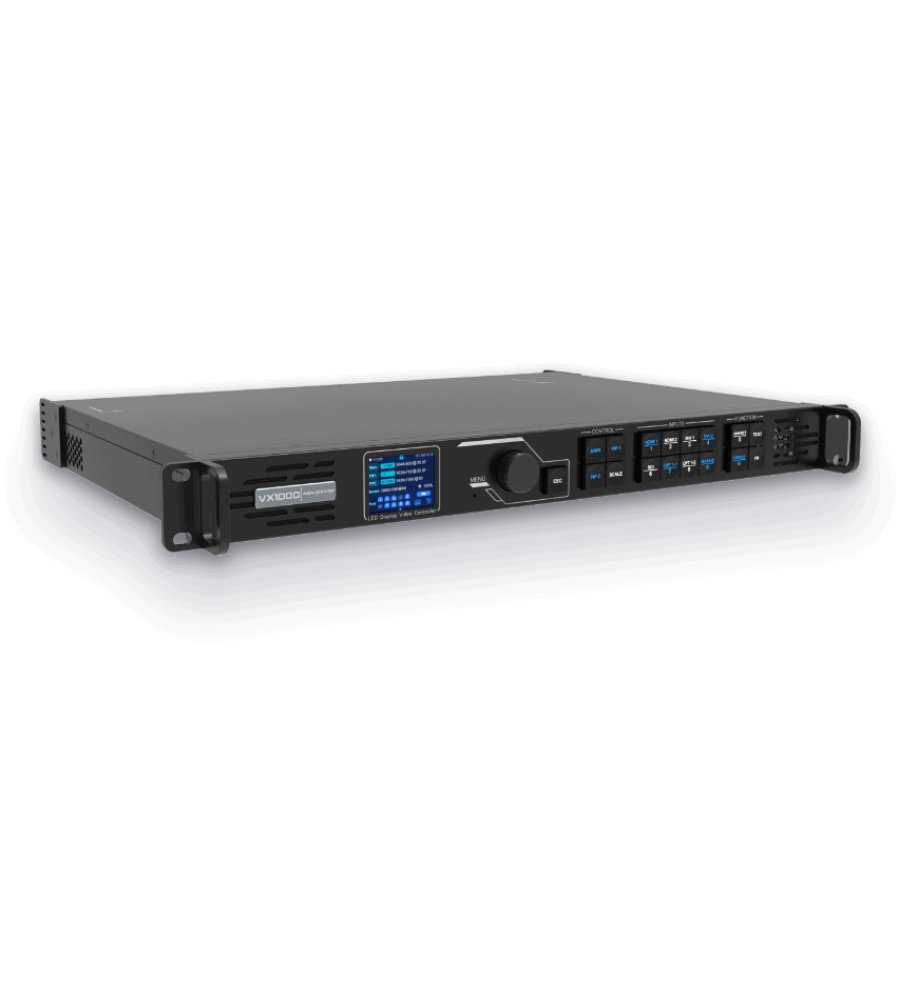

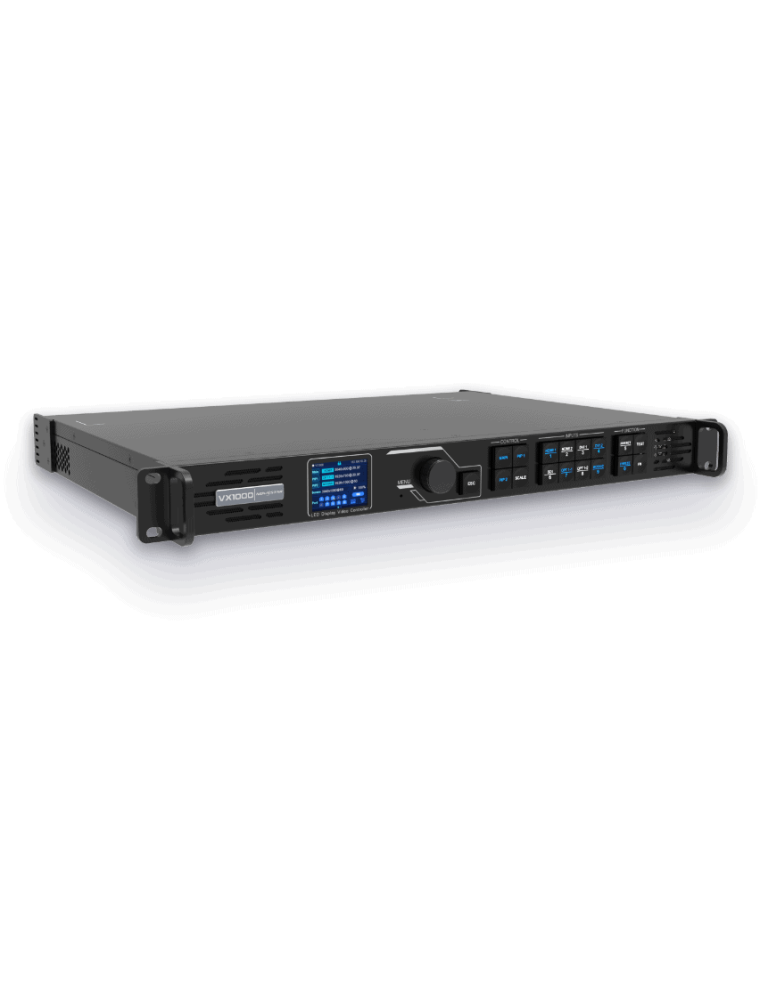

VX1000

The VX1000 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It
features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit
can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels,
respectively, which is ideal for ultra-wide and ultra-high LED screen applications.
The VX1000 is capable of receiving a variety of video signals and processing high-resolution 4K×1K@60Hz images.
In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration
and more, to present you with an excellent image display experience.
What's more, the VX1000 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your
in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management,
preset management and firmware update.
Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can be
widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

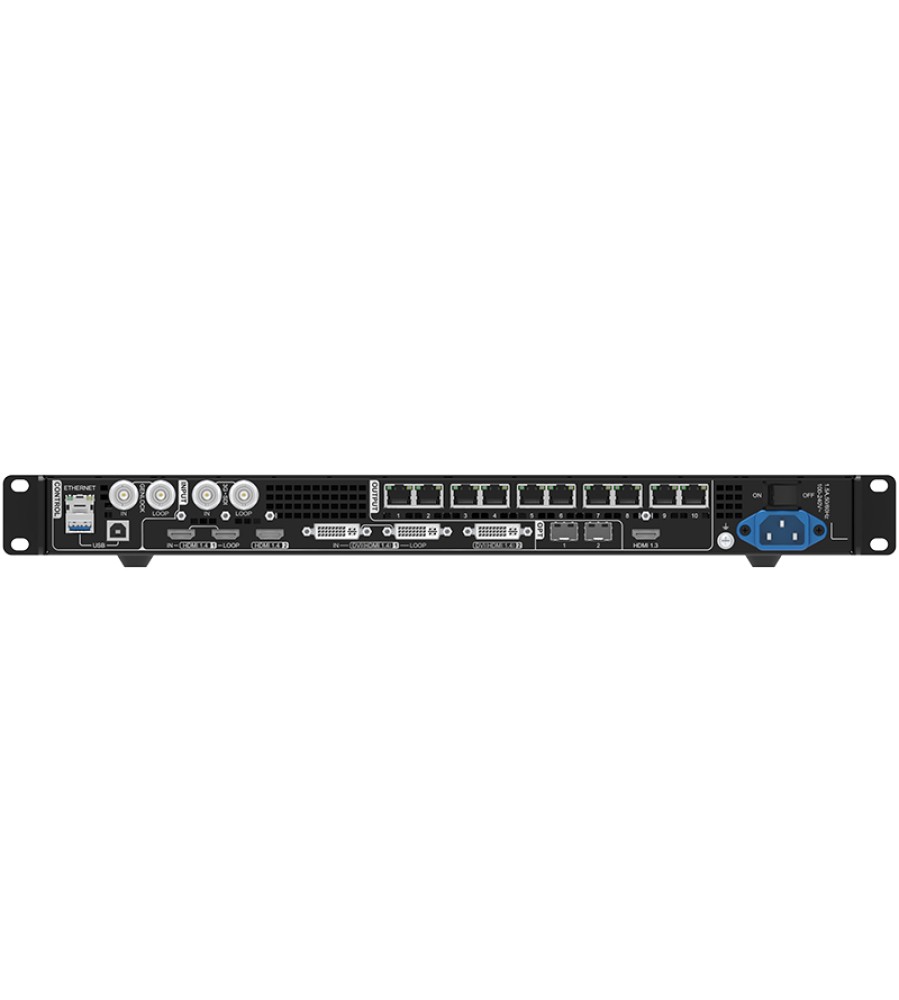

 Input connectors
− 1x HDMI 1.4 (IN & LOOP)
− 1x HDMI 1.4
− 1x DVI (IN & LOOP)
− 1x DVI
− 1x 3G-SDI (IN & LOOP)
− 1x 10G optical fiber port (OPT1)

 Output connectors
− 10x Gigabit Ethernet ports

A single device unit drives up to 6.5 million
pixels, with a maximum width of 10,240
pixels and a maximum height of 8192 pixels.
− 2x Fiber outputs
OPT 1 copies the output on 10 Ethernet
ports.
OPT 2 copies or backs up the output on 10
Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output
